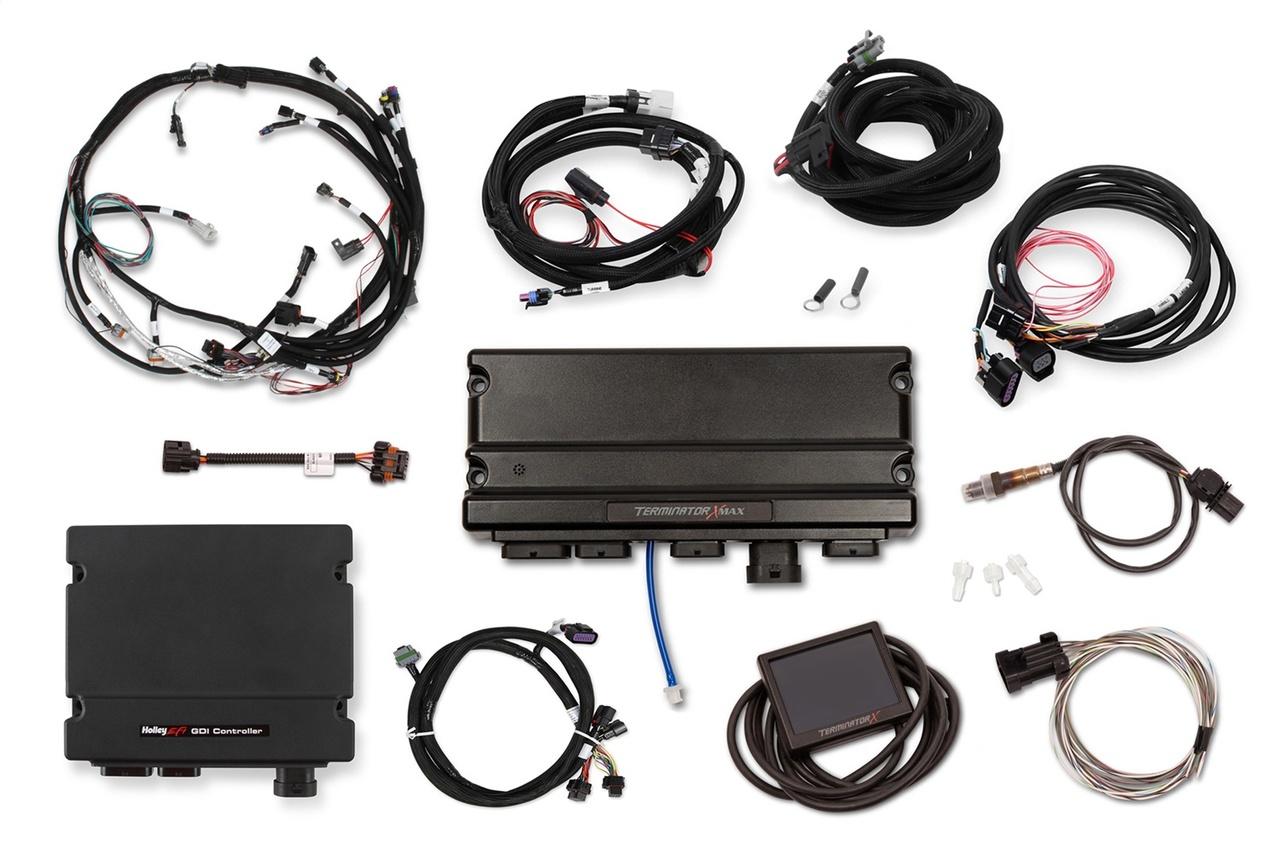

Holley EFI Terminator X Max MPFI System, GM Gen V LS Early Injection w/DBW, 4L60/4L80 Trans - (EFI-550-1630LSD)

Description

Terminator X Max MPFI System; Fits w/GM Gen V LT Direct Injector w/4L60/4L80 Transmission/LS Drive-By-Wire Throttle Body; Early;

Take control of your GM Gen V LT1, L83, or L86 engine with Terminator X! Do not settle for a factory ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, an integrated 1bar MAP sensor, and four programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common LT engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. All Gen V LT Terminator X kits will come with an external Gasoline Direct Injection Controller, which enables the end user to control and tune, factory injectors, GM Gen V LT Variable Valve Timing (VVT), and factory fuel pumps. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building, an LT swapped budget beater or a boosted racecar, Terminator X has the features and technology you need at a price that will not break the bank!

Features & Benefits

• Swapping Late Model GM Gen V LT Engines Into Vintage Vehicles
• Free EFI Tuning Software For Complete Control
• 3.5 in. Handheld Gets Your Engine Running In No Time
• Included Engine Harness Plugs Directly Into The Factory Injector
• OEM Injectors Supported
• Genuine Bosch LSU 4.9 Wideband Control
• Diagnostic LEDS Identify Any Critical Engine Issues At A Glance
• Built In 1bar Map Senso
• 4 Inputs 12v/Ground/5v And Frequency
• 4 Output/Boost Control/Nitrous Control

Specifications:

Part Type:	Fuel Injection System
Engine Make/Size:	Chevy LT1
Cylinder Head Type:	GM LS Series
