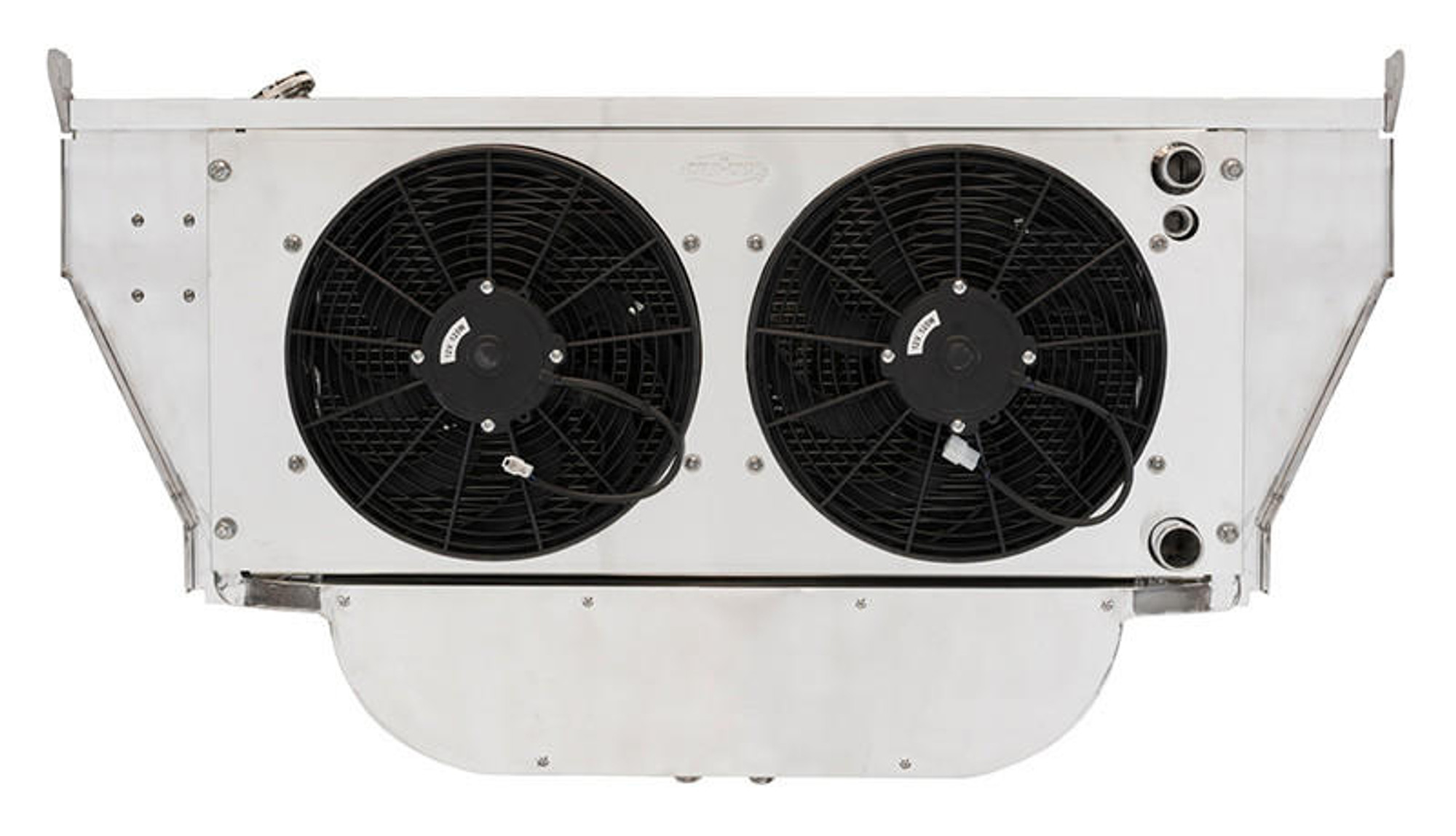

Cold Case Radiators 1956 Chevy Radiator Support Module Kit LS Swap Setups - (CR-CHT56356LS)

Description

1956 Chevy Radiator Support Module Kit LS Swap Setups

1956 Chevrolet Bel Air Tri Five Radiator Support Module Kit. LS Swap setup. For standard chevy configuration, see CR-CHT56356. Each module comes fully assembled and ready to bolt into your vehicle.

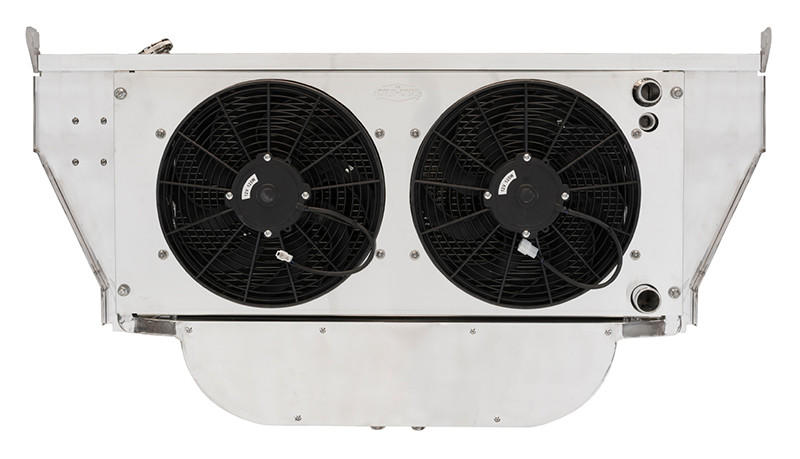

They consist of an aluminum radiator support, big 1.25 inch tube dual core cross flow radiator, two 14 inch 2200cfm fans/shroud combination, billet cap and billet overflow tank.
These are very popular with high tech, high horsepower builds in which maximum cooling is a must. Available in either standard Chevrolet outlet configurations or LS outlet configurations, they are 100 percent TIG welded and polished for a show stopping appearance and backed by our limited lifetime warranty and 60 day cool guarantee.

These new radiator supports modules feature:

Complete modular unit fully assembled ready to install
Extra forward design will clear Big Block and LS front drives
100percent tig welded
Polished aluminum finish
2 row design with 1.25 inch tubes
Available in standard Chevy or LS configurations
Includes dual 14 Inch 2200cfm fans and shroud combination setup
Easy to install even in finished cars
Optional AC condenser and electronic fan controller upgrades

Specifications:

AMP DRAW:	6.85 Avg
Blade Material:	Curved Nylon
Core Height:	16.75 inch
Core Width:	27.5 Inch
Engine:	LS Swap
Fan Diameter:	14 Inch
Fan Quantity:	2
Finish:	Polished
Material:	Aluminum
Max Fan CFM:	3600 CFM
Overall Height:	16.75 Inch
Overall Width:	31.75 Inch
Part Type:	Radiator Support Module
Transmission Type:	Manual
