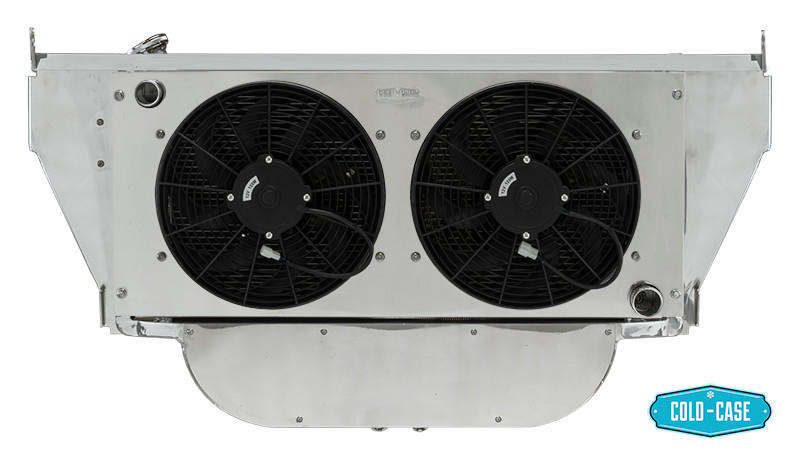

Description1957 Chevy Radiator Support Module Kit Standard Setups
1957 Chevrolet Bel Air Tri Five Radiator Support Module Kit. Standard Chevy engine setup. For LS setup, see CR-CHT56357LS. Each module comes fully assembled and ready to bolt into your vehicle.
They consist of an aluminum radiator support, big 1.25 inch tube dual core cross flow radiator, two 2200cfm fans/shroud combination, billet cap and billet overflow tank.
These are very popular with high tech, high horsepower builds in which maximum cooling is a must. Available in either standard Chevrolet outlet configurations or LS outlet configurations, they are 100 percent TIG welded and polished for a show stopping appearance and backed by our limited lifetime warranty and 60 day cool guarantee.
These new radiator supports modules feature:
- Complete modular unit fully assembled ready to install
- Extra forward design will clear Big Block and LS front drives
- 100 percent tig welded
- Polished aluminum finish
- 2 row design with 1.25 inch tubes
- Available in standard Chevy or LS configurations
- Includes dual 14 inch 2200cfm fans and shroud combination setup
- Easy to install even in finished cars
- Optional AC condenser and electronic fan controller upgrades
Specifications:
AMP DRAW: |
6.85 Avg |
Blade Material: |
Curved Nylon |
Core Height: |
16.75 Inch |
Core Width: |
27.5 Inch |
Engine: |
Chevy Big Block|Chevy Small Block |
Fan Diameter: |
14 Inch |
Fan Quantity: |
2 |
Finish: |
Polished |
Material: |
Aluminum |
Max Fan CFM: |
3200 CFM |
Overall Height: |
16.75 Inch |
Overall Width: |
31.75 Inch |
Part Type: |
Radiator Support Module |
Transmission Type: |
Manual |
