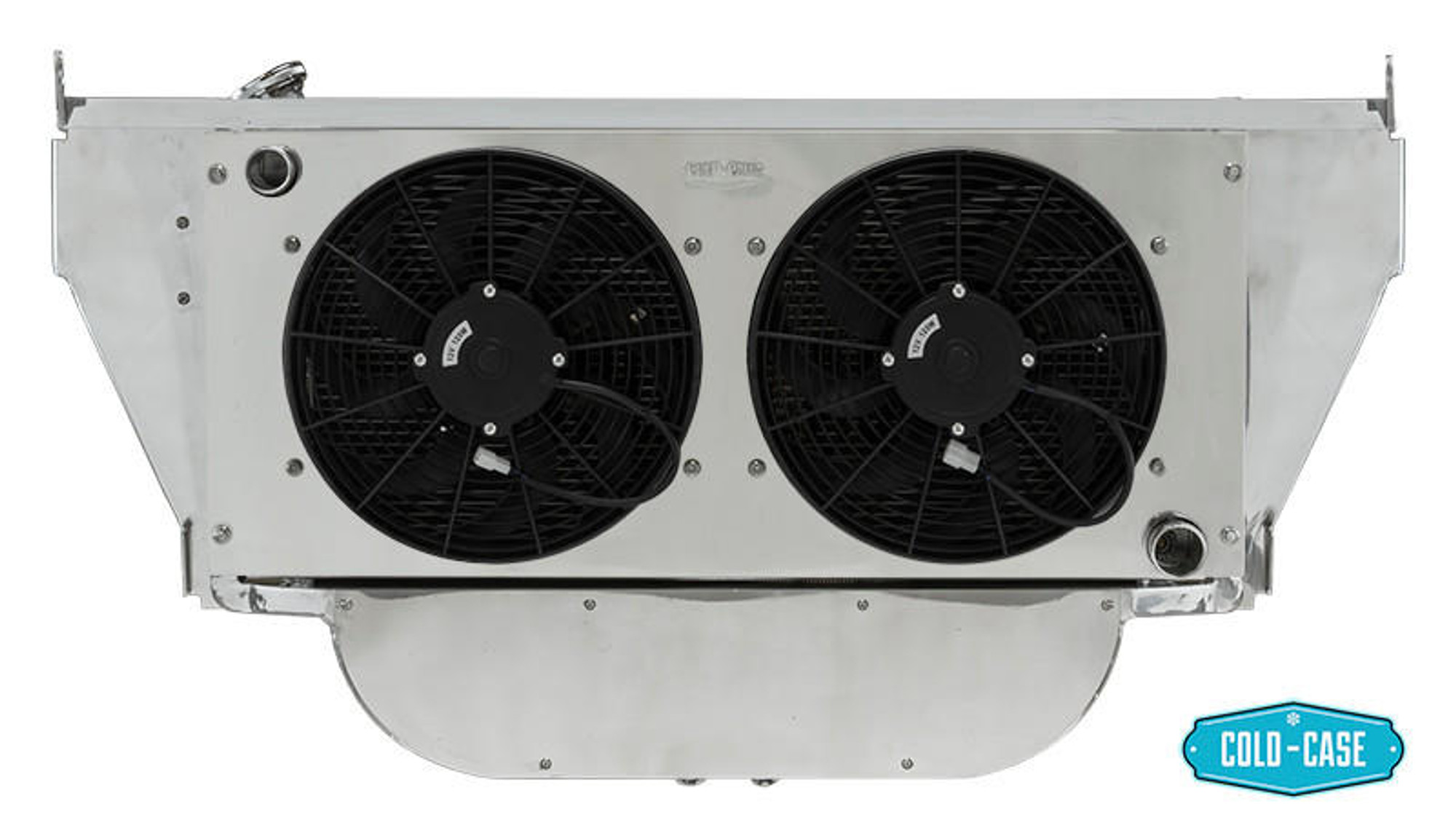

Description1955 Chevy Radiator Support Module Kit Non LSs
1955 Chevrolet Bel Air Tri Five Radiator Support Module Kit. Standard Chevy engine setup. For LS setup, see CR-CHT56355LS. Each module comes fully assembled and ready to bolt into your vehicle.They consist of an aluminum radiator support, big 1.25 inch tube dual core cross flow radiator, two 2200cfm fans/shroud combination, billet cap and billet overflow tank.
These are very popular with high tech, high horsepower builds in which maximum cooling is a must. Available in either standard Chevrolet outlet configurations or LS outlet configurations, they are 100 percent TIG welded and polished for a show stopping appearance and backed by our limited lifetime warranty and 60 day cool guarantee.
These new radiator supports modules feature:
- Complete modular unit fully assembled ready to install
- Extra forward design will clear Big Block and LS front drives
- 100 percent tig welded
- Polished aluminum finish
- 2 row design with 1.25 inch tubes
- Available in standard Chevy or LS configurations
- Includes dual 14 inch 2200cfm fans and shroud combination setup
- Easy to install even in finished cars
- Optional AC condenser and electronic fan controller upgrades
Specifications:
AMP DRAW: |
6.85 Avg |
Blade Material: |
Curved Nylon |
Core Height: |
16.75 Inch |
Core Width: |
27.5 Inch |
Engine: |
Chevy Big Block|Chevy Small Block |
Fan Diameter: |
14 Inch |
Fan Quantity: |
2 |
Finish: |
Polished |
Material: |
Aluminum |
Max Fan CFM: |
3200 CFM |
Overall Height: |
16.75 Inch |
Overall Width: |
31.75 Inch |
Part Type: |
Radiator Support Module |
