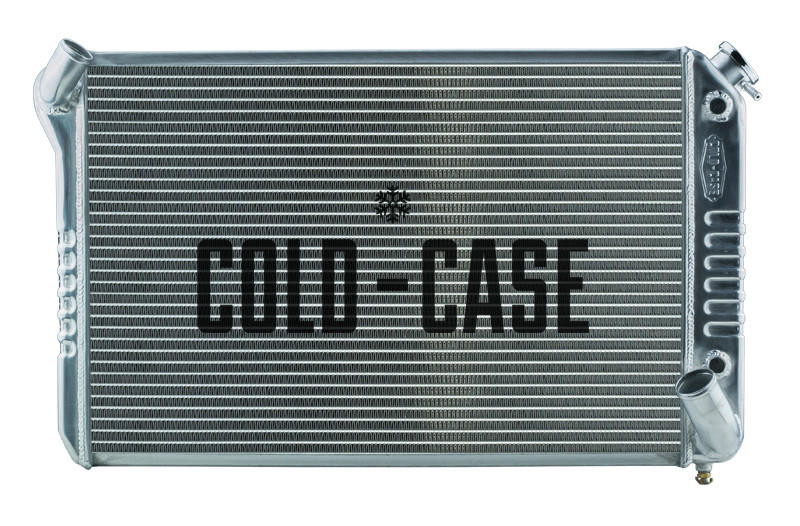

Description69-72 Corvette w/Small Block Chevy, Aluminum Performance Radiator
1969-1972 Corvette Small Block Aluminum Performance Radiator. Has fill neck. For radiator without neck, see CHV714A-1. MT and AT Cars These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Details:
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/auto trans
- Direct fitment for 69-72 Corvette Small Block
Radiator Specs
- Core Height 17 inch
- Core Width 26.25 inch
- Overall Height 19.5 inch
- Overall Width 31.75 inch
- Overall Thickness 3 inch
- Upper Hose 1.5 inch
- Lower Hose 1.75 inch
- Tubes (2) 1 inch Tubes
Specifications:
Core Height: |
17 Inch |
Core Width: |
26.25 Inch |
Engine: |
Chevy Small Block |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
19.5 Inch |
Overall Width: |
31.75 Inch |
Part Type: |
Radiator |
Thickness: |
3.0 Inch |
Transmission Type: |
Automatic |
