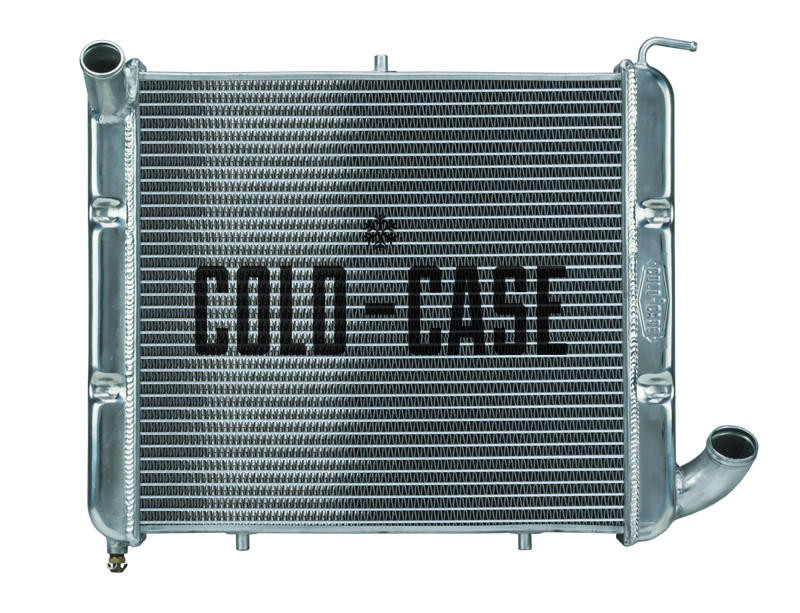

Description65-68 Corvette w/Small Block Chevy, Aluminum Performance Radiator
1965-1968 Chevy Corvette Small Block Aluminum Performance Radiator. AT/MT Cars.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/maual trans
- Direct fitment for 63-68 Corvette w/ Small Block
Radiator Specs
- Core Height 16.5 Inch
- Core Width 17.3 Inch
- Overall Height 18 Inch
- Overall Width 24.5 Inch
- Overall Thickness 3 Inch
- Upper Hose 1.5 Inch
- Lower Hose 1.75 Inch
- Tubes (2) 1 Inch Tubes
Specifications:
Color: |
Silver |
Core Height: |
16.5 Inch |
Core Width: |
17.3 Inch |
Material: |
Aluminum |
Overall Height: |
18 Inch |
Overall Width: |
24.5 Inch |
Part Type: |
Radiator |
Thickness: |
3 Inch |
Transmission Type: |
Manual |
