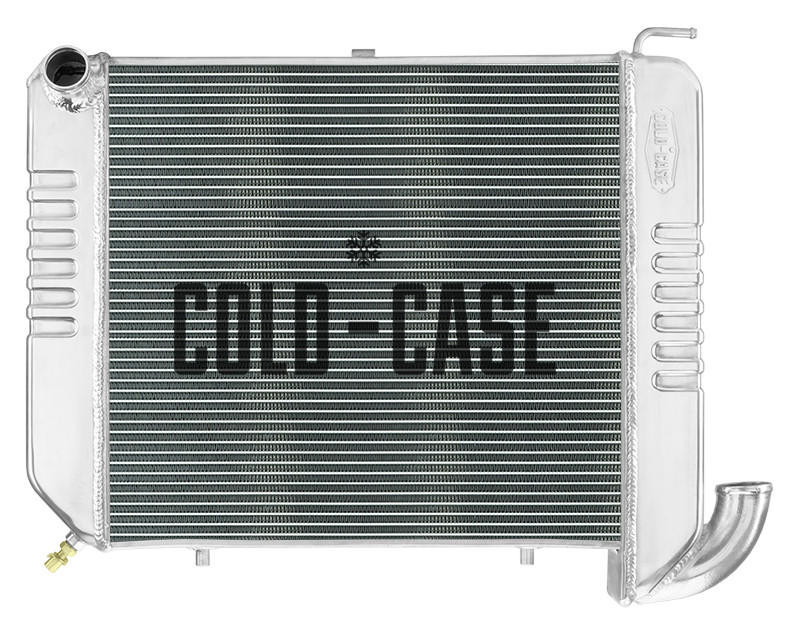

Description1963-64 Corvette w/Small Block Chevy, Radiator
1963-1964 Chevrolet Corvette Small Block Aluminum Performance Radiator. AT/MT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator!
It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Details:
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/maual trans
- Direct fitment for 63-64 Corvette w/ Small Block
Radiator Specs:
- Core Height 16.5 Inch
- Core Width 17 Inch
- Overall Height 18.5 Inch
- Overall Width 22.6 Inch tanks
- Overall Thickness 3 Inch
- Upper Hose 1.25 Inch
- Lower Hose 1.75 Inch
- Tubes (2) 1.25 Inch Tubes
Specifications:
| Core Height: |
16.5 Inch |
| Core Width: |
17.0 Inch |
| Finish: |
Polished |
| Material: |
Aluminum |
| Overall Height: |
18.5 Inch |
| Overall Width: |
22.6 Inch |
| Part Type: |
Radiator |
| Thickness: |
3.0 Inch |
| Transmission Type: |
Automatic|Manual |
Warranty:
All Cold-Case radiators are guaranteed to be free from material and workmanship defects for the lifetime of the radiator.
