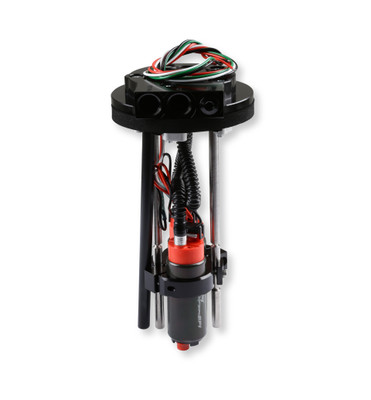

Holley HOLLEY DUAL 450 LPH IN-TANK RETROFIT FUEL MODULE W/RETURN - (HOL-12-173)

Description

Dual 450 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports up to 1700 EFI or 2200 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 34 AMP Draw)

 (E85, 13.5V, 10 PSI) - 1550 HP

Features & Benefits

• Billet, anodized, laser etched flanges with 8AN ORB Return/Outlet and 6AN ORB vent
• The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit
• The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
• Easy install – just drill a 4” hole in the top of the tank then use hand tools
• E85 compatible
• The dual pump design allows the pumps to be ran together or the second pump can be triggered additionally when you need it (Hobbs switch, Holley EFI auxiliary pump circuit, etc…)
• Units install in tanks from 7” – 12” deep
• Filter socks included, Hydramats can be purchased separately
• Easily wire with an MSD High Current Solid State Relay (75643, 75643-HC, 7564, 7564-HC) or dual relay kit (12-759)

Specifications:

Gasket Or Seal Included:	Yes
Application:	Universal
Housing Material:	Aluminum
Grade Type:	Performance
Material:	Billet
Inlet Quantity:	One
Fuel Type:	Gasoline
Outlet Type:	8 AN ORB
Mounting Hardware Included:	Yes
Height:	Adjustable
Part Type:	Fuel Pump Module Assembly
Inlet Type:	8 AN ORB
Voltage:	12 2H
Outlet Quantity:	One
Wire Quantity:	4
Product Type:	Fuel Pump Module
Universal Or Specific Fit:	Universal

Warranty:

Manufacturer's Limited 90 Day Warranty
