Description

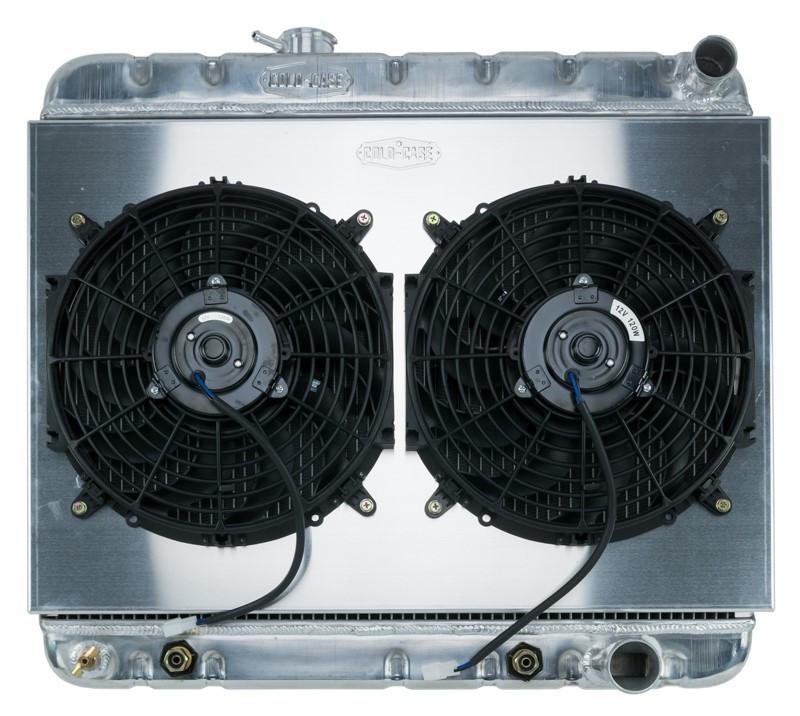

64-65 GTO w/AT & AC 17.5" Aluminum Performance Radiator & Dual 12" Fan Kit
1964-1965 Pontiac GTO Tempest LeMans Aluminum Performance Radiator with Dual 12 inch Fan Kit. AT Transmission. All 1964 GTO, 1965 GTO w/ AC. This is the taller 17.5 inch core for factory AC cars.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
All Aluminum
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For auto trans (auto-trans-cooler)
Direct fitment for 64-65 GTO
Radiator Specs:
Core 17-1/2 inch
Width 25 inch
Overall Height 21-7/8 inch
Overall Thickness 6 inch
Upper Hose 1-1/2 inch
Lower Hose 1-13/16 inch
Tubes (2) 1 inch Tubes
Trans Lines 12-1/4 inch
Specifications:
AMP DRAW: |
6.85 Avg |
Color: |
Black |
Core Width: |
25.50 Inch |
Fan Quantity: |
2 |
Max Fan CFM: |
3200 CFM |
Overall Width: |
25.50 Inch |
Shroud Material: |
Yes |
Transmission Type: |
Automatic |
Blade Material: |
Curved Nylon |
Core Height: |
15.31 Inch |
Fan Diameter: |
12 Inch |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
20.25 Inch |
Part Type: |
Radiator Kit |
Thickness: |
6.75 Inch |
