Description

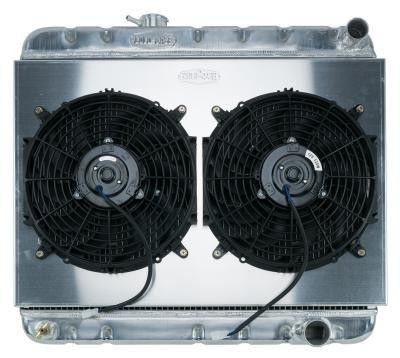

64-65 GTO w/MT w/o AC Aluminum Performance Radiator & Dual 12" Fan Kit
1964-1965 Pontiac GTO Tempest LeMans Aluminum Performance Radiator with Dual 12 inch Fan Kit.
MT Cars w/o AC. This is the smaller 15.5 inch core for cars without factory AC. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
All Aluminum
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For manual/standard trans
Direct fitment for 65 GTO
Radiator Specs:
Core Height 15-1/2 inch
Core Width 25-1/4 inch
Overall Height 20-1/8 inch
Overall Thickness 6 inch
Upper Hose 1-1/2 inch
Lower Hose 1-13/16 inch
Tubes (2) 1 inch Tubes
Specifications:
Blade Material: |
Curved Nylon |
Core Width: |
25.50 Inch |
Fan Quantity: |
2 |
Max Fan CFM: |
3200 CFM |
Overall Width: |
25.50 Inch |
Shroud Material: |
Yes |
Transmission Type: |
Manual |
AMP DRAW: |
6.85 Avg |
Core Height: |
15.31 Inch |
Fan Diameter: |
12 Inch |
Finish: |
Polished |
Material: |
Aluminum |
Overall Height: |
20.25 Inch |
Part Type: |
Radiator Kit |
Thickness: |
6.75 Inch |
