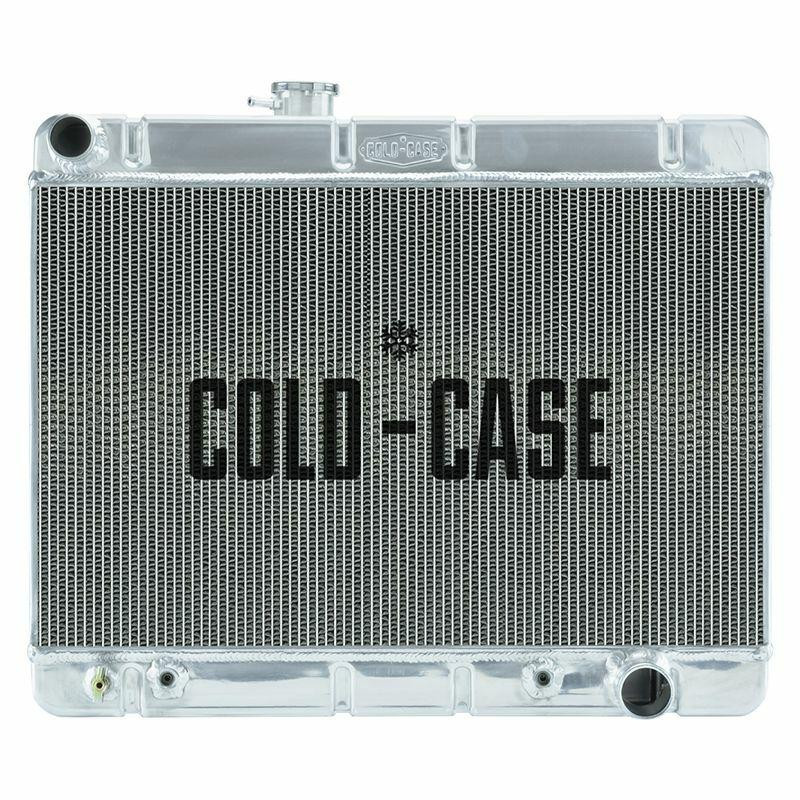

64-67 GTO w/o AC HO/SD AT 15.5" Aluminum Performance Radiator 20X25.2X3
1964-1967 Pontiac GTO Tempest LeMans Super Duty 1.25 inch Tubes Aluminum Performance Radiator. AT Cars w/o AC.
This is the smaller 15.5 Inch core for cars without factory AC. This is our heavy duty model with 2 rows on 1.25 Inch cooling tubes. This is the 66-67 version setup but will work in all 64-67 cars with an non AC support. Not for use with original fan shroud.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
All Aluminum
Polished OE style tanks
(2) 1.25 Inch Rows
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For auto trans (auto-trans-cooler)
Radiator Specs:
Core 15-1/2 Inch
Width 25-1/4 Inch
Overall Height 20-1/8 Inch
Overall Thickness 3 Inch
Upper Hose 1-1/2 Inch
Lower Hose 1-13/16 Inch
Tubes (2) 1.25 Inch Tubes
Trans Lines 12-1/4 Inch
Specifications:
Core Height: |
15.31 Inch |
Finish: |
Polished |
Material: |
Aluminum |
Overall Width: |
25.50 Inch |
Shroud Material: |
No |
Transmission Type: |
Automatic |
Core Width: |
25.50 Inch |
Overall Height: |
20.25 Inch |
Part Type: |
Radiator |
Thickness: |
3.0 Inch |
