Description

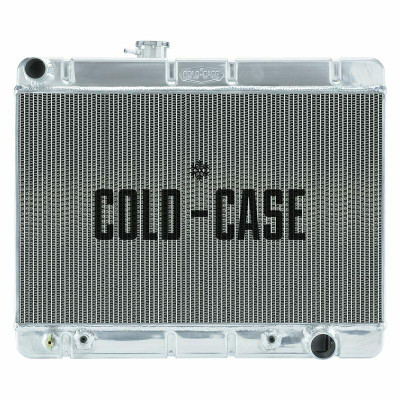

64-67 GTO w/AC HO/SD AT Aluminum Performance Radiator Polished OE Style Tanks
1964-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator. AT Cars with AC. This is the taller 17.5 Inch core for cars with factory AC. This is our heavy duty model with 2 rows on 1.25 Inch cooling tubes. This is the 66-67 version setup but will work in all 64-67 cars with an AC support. Not for use with original shroud.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
All Aluminum
Polished OE style tanks
(2) 1.25 Inch Rows
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For auto trans (auto-trans-cooler)
Radiator Specs:
Core Height 17-1/2 Inch
Core Width 25-1/8 Inch
Overall Height 21-7/8 Inch
Overall Thickness 3 Inch
Upper Hose 1-1/2 Inch
Lower Hose 1-13/16 Inch
Tubes (2) 1.25 Inch Tubes
Trans Lines 12-1/4 Inch
Specifications:
Core Width: |
24.75 Inch |
Overall Height: |
22.25 Inch |
Part Type: |
Radiator |
Thickness: |
3.0 Inch |
Core Height: |
17.25 Inch |
Finish: |
Polished |
Material: |
Aluminum |
Overall Width: |
24.75 |
Shroud Material: |
No |
Transmission Type: |
Automatic |
