Description

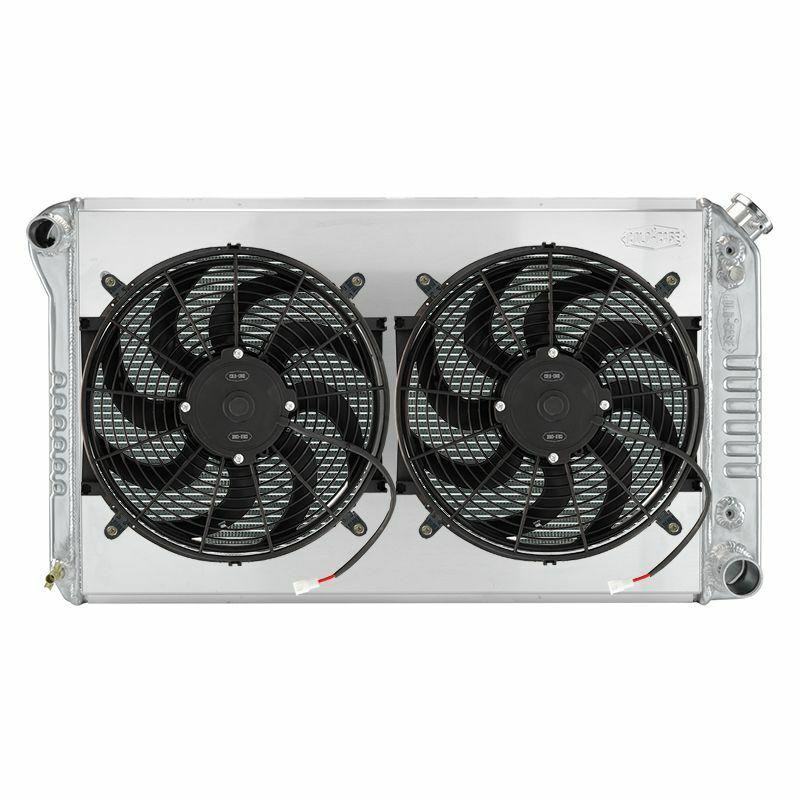

77-87 Chevy/GMC Truck w/AT 21" Aluminum Performance Radiator & Dual 14" Fans
1977-1987 Chevy/GMC Truck Aluminum Performance Radiator. This is the radiator that is 21 Inch high overall. See CR-GMT556A for the 19 Inch high version.
1.25 inch Upper and 1.5 inch Lower Hoses. For other configuration, see CR-GMT556A21.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping.
Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Specifications:
| AMP DRAW: |
6.85 Avg |
| Core Height: |
17.2 Inches |
| Fan Diameter: |
14 Inch |
| Finish: |
Polished |
| Material: |
Aluminum |
| Overall Height: |
18.6 Inches |
| Part Type: |
Radiator |
| Thickness: |
6.75 Inch |
| Blade Material: |
Curved Nylon |
| Core Width: |
28.35 Inches |
| Fan Quantity: |
2 |
| Max Fan CFM: |
3600 CFM |
| Overall Width: |
34.15 inches |
| Shroud Material: |
Yes |
| Transmission Type: |
Automatic |
Warranty:
All Cold-Case radiators are guaranteed to be free from material and workmanship defects for the lifetime of the radiator.
