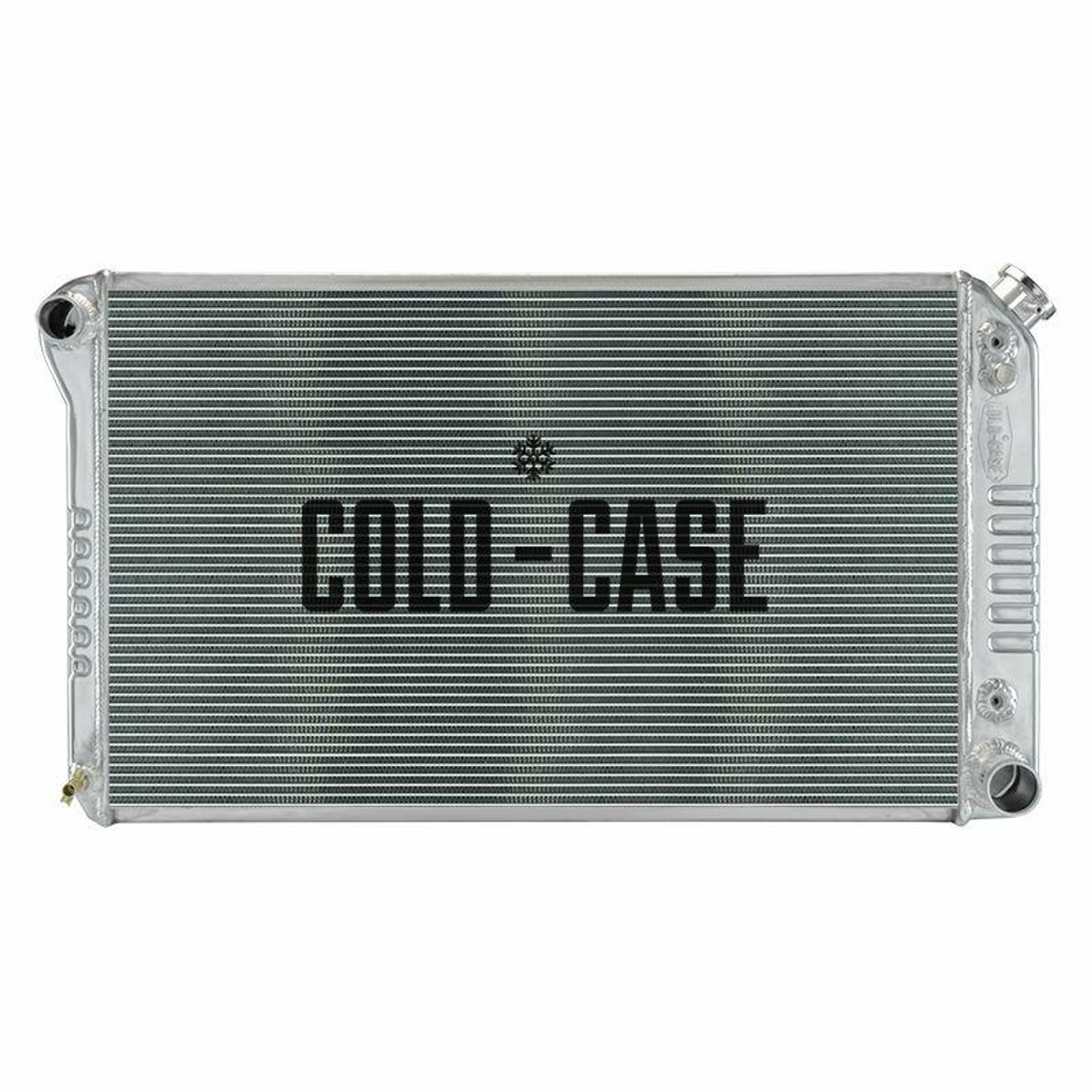

77-87 Chevy/GMC Truck w/AT 19" Aluminum Performance Radiator 34.1x18.6x3
1977-1987 Chevy/GMC Pickup Truck 19 inch High Aluminum Performance Radiator. AT Cars. For taller 21 inch version, see GMT556A-21. Upper hose 1.25 inch and Lower 1.5 inch. See CR-GMT556A for other configuration.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Details:
100 percent TIG welded
All Aluminum
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For Automatic trans
Direct fitment for 77-87 GM Truck w/ 1.5 inch Lower
Radiator Specs:
Core Height 17.2 inch
Core Width 28.35 inch
Overall Height 18.6 inch
Overall Width 34.15 inch
Overall Thickness 3 inch
Upper Hose 1.25 inch
Lower Hose 1.5 inch
Tubes (2) 1.25 inch Tubes
Trans Cooler Fitting: 5/16 inch Inverted Flare
Specifications:
Core Width: |
28.35 Inch |
Overall Height: |
18.6 Inch |
Part Type: |
Radiator |
Transmission Type: |
Automatic |
Core Height: |
17.2 Inch |
Finish: |
Polished |
Material: |
Aluminum |
Overall Width: |
34.15 Inch |
Thickness: |
3.0 Inch |
