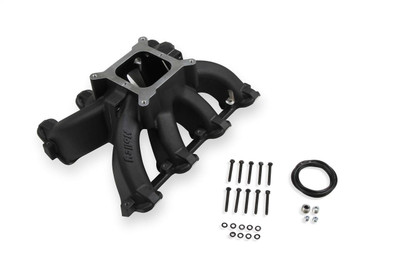

DescriptionRace Intake Manifold; Fits w/GM LS III/IV engines w/LS3/L92 Heads; 7.25 in. Front H; 7.25 Rear H; Split Single Plane; Black; Cast Construction;
The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI. The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm. The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. INTAKE MNFLD LS3 SPLIT SGL-PLN CARB-BLAC
Features & Benefits
- Maximum Performance Race Design With Hood Clearance Consideration
- Lighter Than Other Split Race Intakes
- Split Feature Making Porting Efforts Easy
- 33 To 50 Percent The Price Of Other Split Race Intakes
- Captured O Ring Seals At Head Ports And Split
Specifications:
Part Type: |
Engine Intake Manifold |
Color: |
Black |
Finish: |
Black |
Front Height: |
7.250 in. |
Barrel: |
Four |
Engine Make/Size: |
GM LS1/LS2/LS6 |
Flange Type: |
4150 Square Bore |
Fuel System Type: |
Carb |
Manifold Type: |
Single Plane |
Rear Height: |
7.250 in. |
RPM Range: |
2500-7000 |
