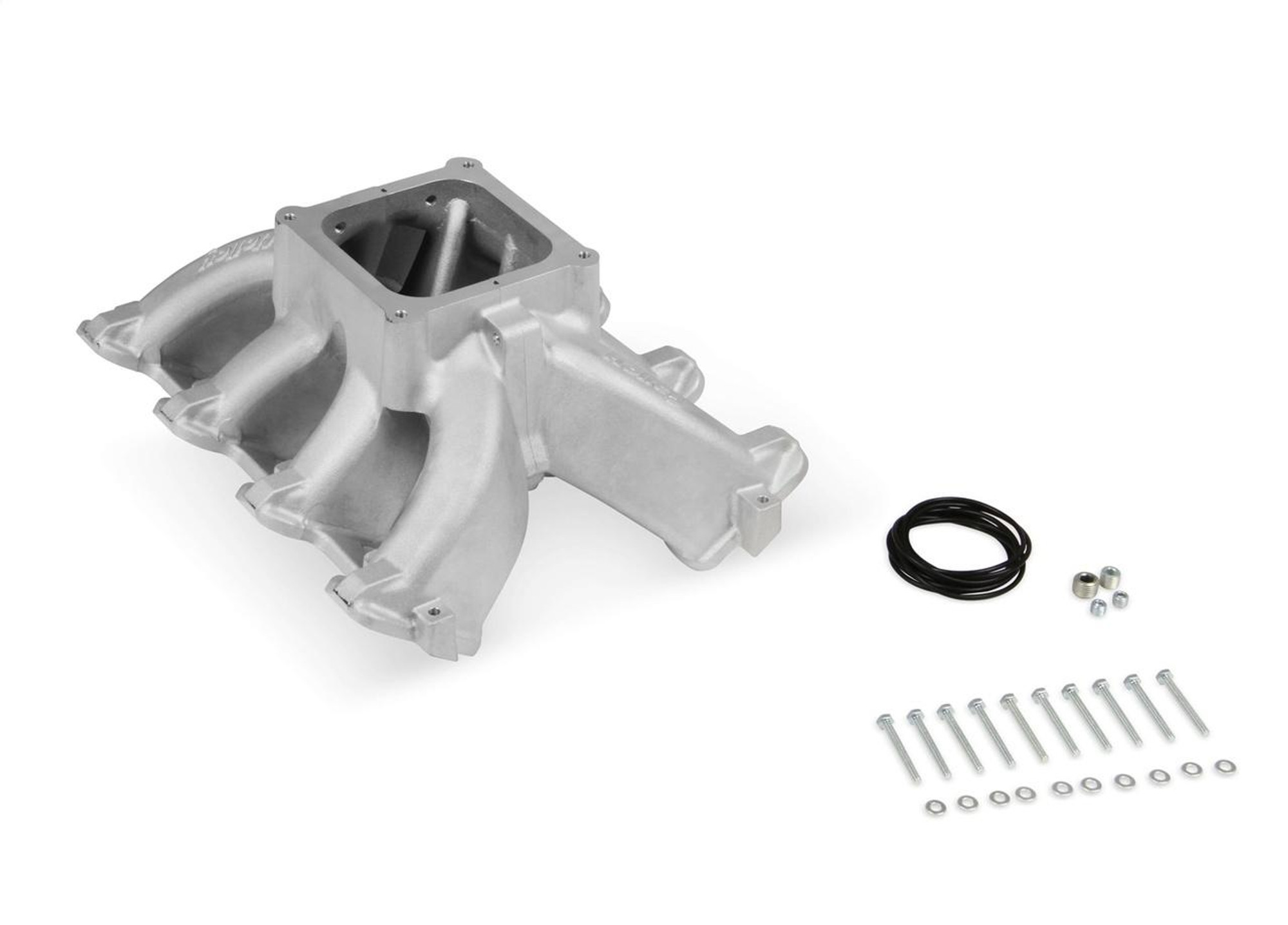

Holley Race Intake Manifold, For GM LS1/LS2/LS6, Carbureted, Cast Finish - (HOL-300-295)

Description

Race Intake Manifold; Carbureted; Fits W/GM LS1/LS2/LS6 Engines; 4500 Dominator Flange; 7.320 in. Front H.; Split Single Plane; Satin Finish; Silver; w/Fuel Rails;

The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise. The manifold with AN-8 fuel rails fits GM LS Gen III engines with cathedral port heads and has a 4500 Dominator style carb flange for carburetors, EFI throttle bodies, or EFI throttle body elbows, and is configured with a LS MAP sensor port along with other NPT plenum vacuum or air-temp sensor ports. The LS Race single-plane intake manifold is designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacements, N/A or with power adders. The large volume 4500 plenum and optimized runners provide airflow potential for Hi-RPM engines with max power at 7500-8000+ RPM.

Features & Benefits

• Maximum Performance Race Design With Hood Clearance Consideration
• Lighter Than Other Split Race Intakes
• Split Feature Making Porting Efforts Easy
• Captured O Ring Seals At Head Ports And Split

Specifications:

Part Type:	Engine Intake Manifold
Usage:	Street/Hi-Performance
Engine Make/Size:	GM LS1/LS2/LS6
RPM Range:	2500-7000
