A 1964-72 A-body Chevelle with four-wheel drums can go fast, but stopping is another story. This Right Stuff kit converts the car to four-wheel power discs, with 11" rotors front and rear and a 9" booster that gives solid assist while leaving extra room on the firewall, all at stock ride height.
Why It's Worth It
- 11" rotors at all four corners with single-piston calipers and pads
- 9" single-diaphragm booster with a 1" bore dual-port master cylinder
- New front spindles included
- E-brake cables in the box, so the parking brake works with the rear discs

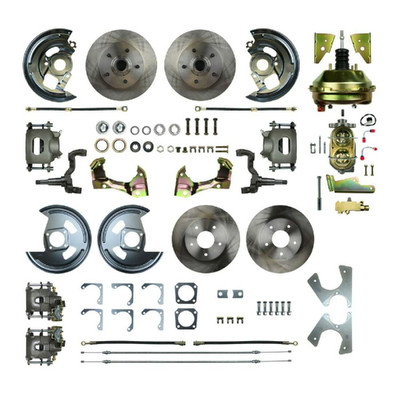

What's Included
- Front and rear disc brake hardware with pads
- Spindles
- 9" power booster and 2-port master cylinder
- E-brake cables
Before You Order
- Requires 15" or larger wheels
- The new spindles push each front wheel out 3/8" more than stock; check tire-to-fender clearance
- Check your rear end (10-bolt or 12-bolt) and axle setup before ordering
Specifications:
| Booster Diaphragm Type: |
Single |
| Booster Housing Diameter: |
9 IN |
| Brake Activation: |
Power |
| Brake Booster Included: |
Yes |
| Caliper Piston Quantity: |
1 |
| E-Brake Cables Included: |
Yes |
| Fits Wheel Size: |
15"+ IN |
| Front Rotor Diameter: |
11 IN |
| Master Cylinder Bore Size: |
1 IN |
| Master Cylinder Included: |
Yes |
| Master Cylinder Port Quantity: |
2 |
| Pads Included: |
Yes |
| Part Type: |
4 Wheel Disc Brake Conversion Kit |
| Rear Rotor Diameter: |
11 IN |
| Shocks: |
Non Staggered |
| Spindles Included: |
Yes |
| Vehicle Ride Height: |
Stock Height |
| Disclaimer: |
The new spindles included in this kit will push the wheels outwards by 3/8 inch more than stock |
Warranty:
The Right Stuff products carry a limited lifetime warranty to be free of defects in material and workmanship. The warranty is void if the product has been altered, improperly installed or used for purposes other than originally intended.
